Shure PSM300 P3TR112GR wireless in-ear personal monitor system c/w SE112 earphones

Manufacturer: Shure

SKU: P3TR112GR

Availability: Available

Frequency Range

Regular Price: $1,259.00

Special Price $1,069.00

Qty

-OR-

Quick Overview

PSM300

The P3TR112GR is part of the PSM 300 wireless systems family.

PSM®300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts.

Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode® technology or stereo mode to create a personal mix from two channels of audio.

Featuring SE112 Sound Isolating™ Earphones, P3TR112GR provides great sound and simple setup for entry-level users.

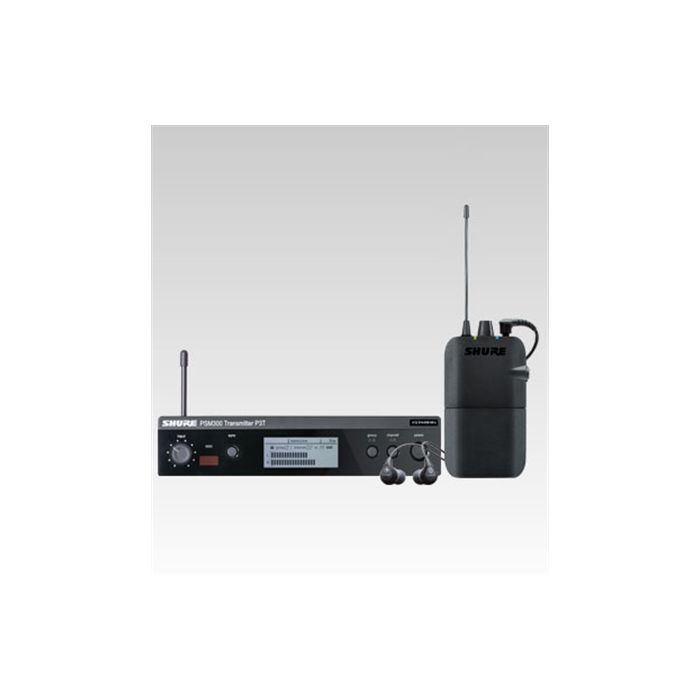

Includes P3R, P3T, SE112, rackmount and hardware kits, ¼ wave antenna, BNC bulkhead adapter, BNC cable, power supply, 2 AA batteries, zipper bag, and user guide

Available in J10 (584-608 MHz) or L19 (630-654 MHz) frequency ranges. Please specify preference on check out.

RF Output Power: 10 - 30 mW (countryspecific)
Operating Distance: Up to 100 m
Harmonic distortion: 1.5 % typical
Signal-to-noise-ratio: 80 dB (A) typical
Listening mode: Mono
Compatible Systems per band (up to): 4
Transmitter Inputs: 2x XLR/6,3 mm combo, mic/line level
Transmitter Outputs: 2x XLR split outputs
Wired Bodypack Option: Yes
Personal Mix Control: On transmitter
Remoteable Transmitter: No
Battery Life: Wired: 6 h; Wireless: 4 h
Frequency Response: 30 Hz - 12 kHz

Further technical specifications:
PSM®200 System
- RF Carrier Frequency Range: 518-865 MHz (country dependent)
- Modulation: FM +/- 35 kHz Deviation (Nominal)
- Operating Temperature: -7 degrees C to +49 degrees C (+20 degrees F to +120 degrees F)
EP2T TransMixer
- Modulation Limiter: Internal peak limiter (>10:1 hard knee compression)
- Antenna: 1/4 Wavelength, semi-rigid, PCB Mount
- Connector Type: XLR/1/4-inch combo
- Nominal Input Level: 25 dBu @ 1/2 volume (12 o'clock)
- Maximum Input Level: 5 dBu @ 1/2 volume (12 o'clock)
- Current: 170 mA maximum
- Dimensions: 220 mm x 140 mm x 40 mm (8.6 in. x 5.6 in. x 1.7 in.)
- Net Weight: 370 g (13 oz.)
P2R Receiver
- RF Sensitivity: 109 dBm typical
- Squelch Threshold: 102 dBm typical
- Antenna: Attached Whip
- Audio Input Connector: Connector Type: 1/4-inch Mono
- Impedance: 1 megohm
- Maximum Input Level: LO = +0 dBu; HI = 10 dBu
- Frequency Response: 30 Hz to 20 kHz (+/ 3 dB); earphone dependent
- Power Requirements: 9 V alkaline battery, Duracell® type MN1604 recommended
- Audio Output Connector: 1/8 inch (3.5 mm)
- Minimum Load Impedance: 8 ohms
- Net Weight: 100 g (3.52 oz.), less battery
- Overall Dimensions: 122 mm x 73 mm x 32 mm (4.809 in. x 2.875 in. x 1.251 in.)
SE112 Earphones
- Frequency Range: 25Hz – 17.5kHz
- Sensitivity: 108 dB SPL/mW (@ 1kHz)
- Impedance: 16 Ohms (@ 1kHz)
- Input Connector: 3.5mm (1/8”)
- Colour: Gray
- Cable Length: 127 cm (64”)
