NEXO L18 High Output 18" Subwoofer
A$6,300.00
Availability: Available
Manufacturer
SKU
L18U
L18

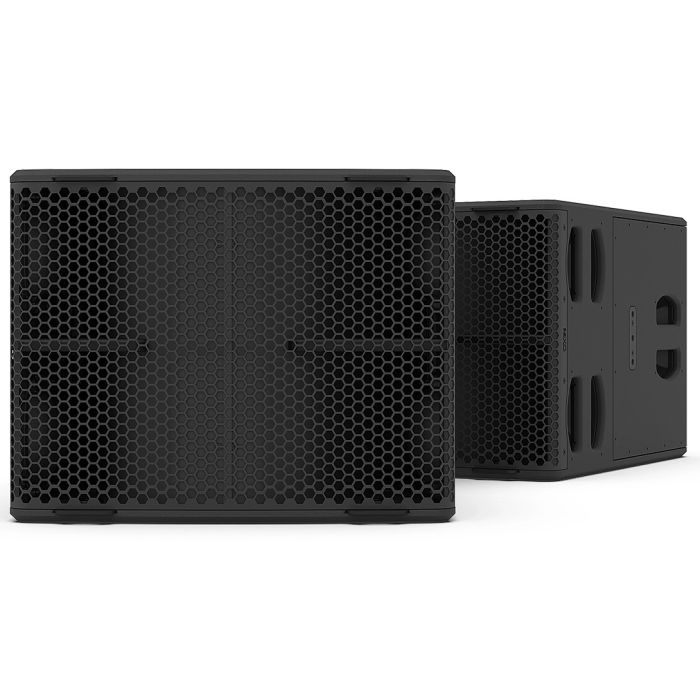

Measuring 680mm wide x 559mm high x 775mm deep and weighing 50Kg, the L18 sub employs a 18″ long excursion driver in Baltic birch / poplar plywood cabinet with threaded inserts for mounting accessories and an M20 stand fitting. With a frequency range of 32Hz-120Hz, and 140dB Peak SPL, The L18 is specially designed in a footprint to match the P15, making it a perfect partner in flown applications, and for use as a drum fill.
KEY FEATURES
- Dedicated partner sub for P15 with matching footprint
- Extends LF performance to 32Hz
- 140dB peak SPL
- Can be deployed in standard and cardioid modes
- Threaded inserts on the back and on both sides for connection of mounting accessories
- Standard fitting M20
FEATURES
| Components | 1x 18" – 4 ohms – Long excursion – Neodymium driver |
| Connectors | 2x NL4, 4 poles connectors |
| Rigging Points | 1 x Universal accessory fit on each side + 1 x M20 thread for Pole Stand on top |
| Material | Custom made bent plywood of Baltic birch and poplar |
| Finish | Black or white structural paint |
| Front Finish | Steel front grille |
| Weight | 50 kg |
| Height x Width x Depth | 559mm x 680mm x 775 mm (22.0” x 26.8” x 30.5”) |
| Operating Temperature Range | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature Range | -20°C - 60°C (-4°F - 140°F) |
| System Operation | |
| Recommended Powering Solution | NXAMP4X2MK2: 1 x L18 per channel |
| Optional Powering Solutions | NXAMP4X1MK2 (Bridged): 1 x L18 per channel |
| NXAMP4X4MK2: Up to 2 x L18 per channel |
| Specification | SPECIFICATIONS
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Package | 1 Pack |
SPECIFICATIONS
| Frequency Response (+6 dB | 32 Hz - 120 Hz |
| Peak SPL Level (1m) | 140 dB Peak |
| Recommended Amplifiers | 1550 to 2450 Watts / 4Ω |
| Crossover Frequency | 60 Hz, 85 Hz, 120 Hz |
| Nominal Impedance | 4Ω |
