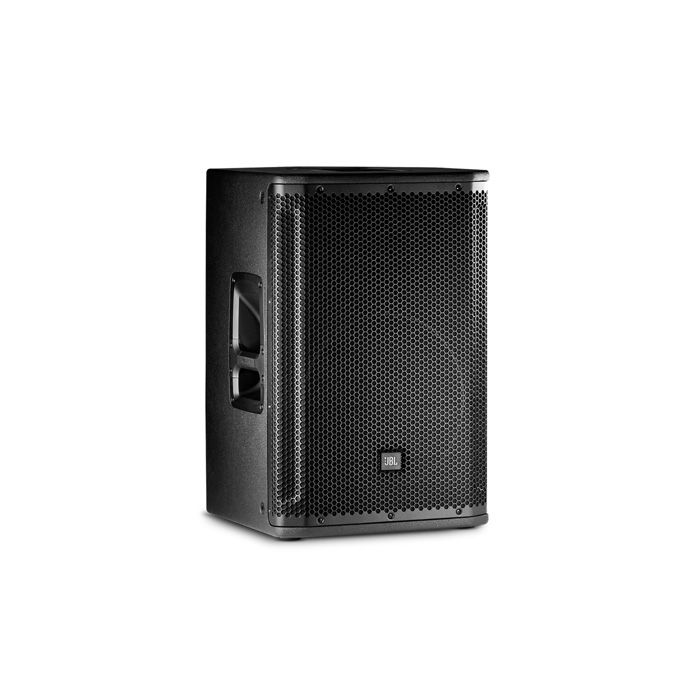

SRX812 is a two-way full range passive portable speaker with a 12” woofer made for use as a light-duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX812 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.

	System Type	Passive 12”, two-way, bass-reflex
	Maximum SPL Output	135dB
	Frequency Range (-10dB)	41hz - 20khz
	Frequency Response (- 3dB)	57hz - 20khz
	Sensitivity (1W/1m)	95 dB
	System Power Rating	3200W Peak, 1600W Program, 800W Continuous
	Nominal Impedance	8 Ohm
	Connectors	NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
	Operational Modes	Passive/Bi-Amp
	LF Driver	2272H
	HF Driver	2432H
	Coverage Pattern	90 x 50
	Crossover Frequency	1.9khz
	Enclosure Material	18mm plywood
	Monitor Angle	50°
	Suspension/Mounting	Dual 36mm pole socket, 12 x M10 Suspension points
	Handles	3
	Finish	Obsidian Duraflex™ finish
	Grille	Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
	Dimensions (L x W x H)	16.87" x 16.31" x 25.11" (429mm x 415mm x 638mm)
	Weight	55.0 lbs (24.9kg)
	Shipping Weight	65 lbs (29.3kg)
