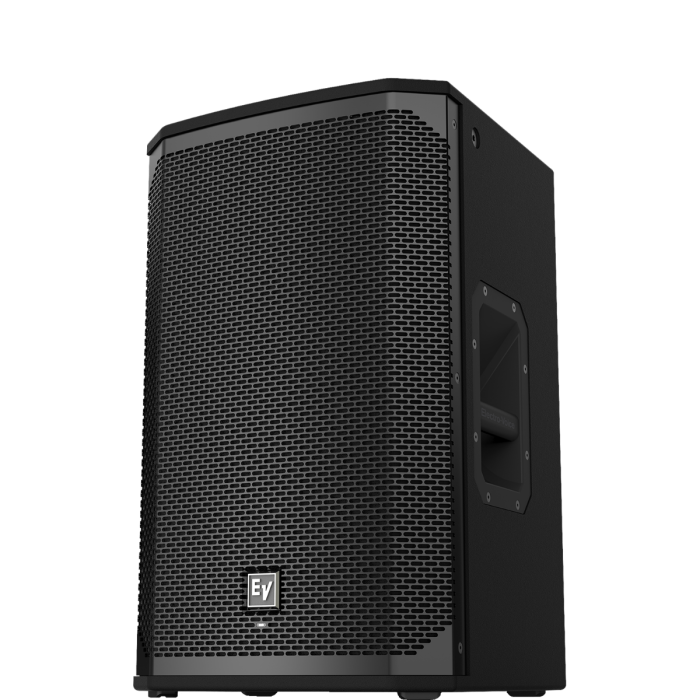

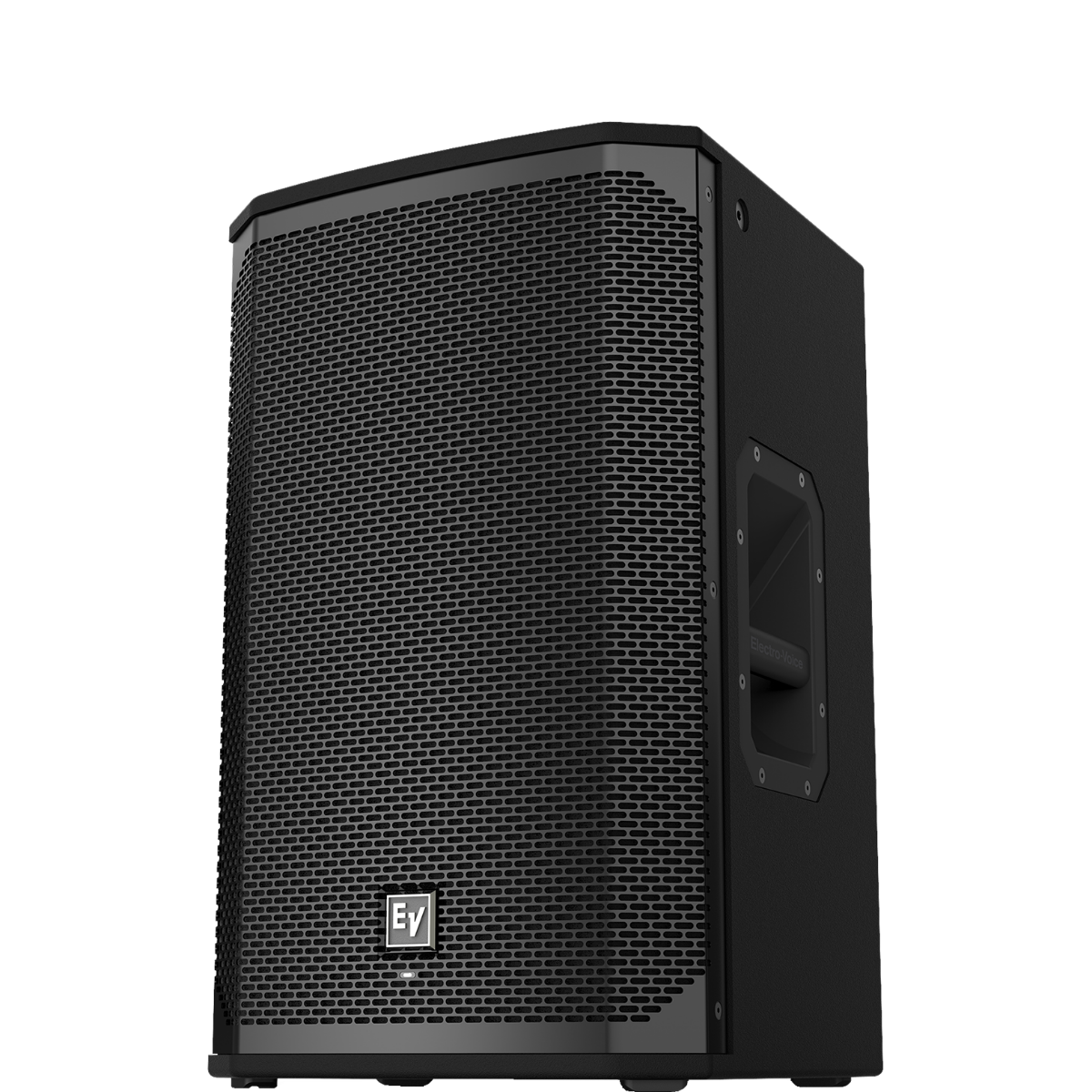

EKX-12P

12-Inch Two-Way Powered Loudspeaker

QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.

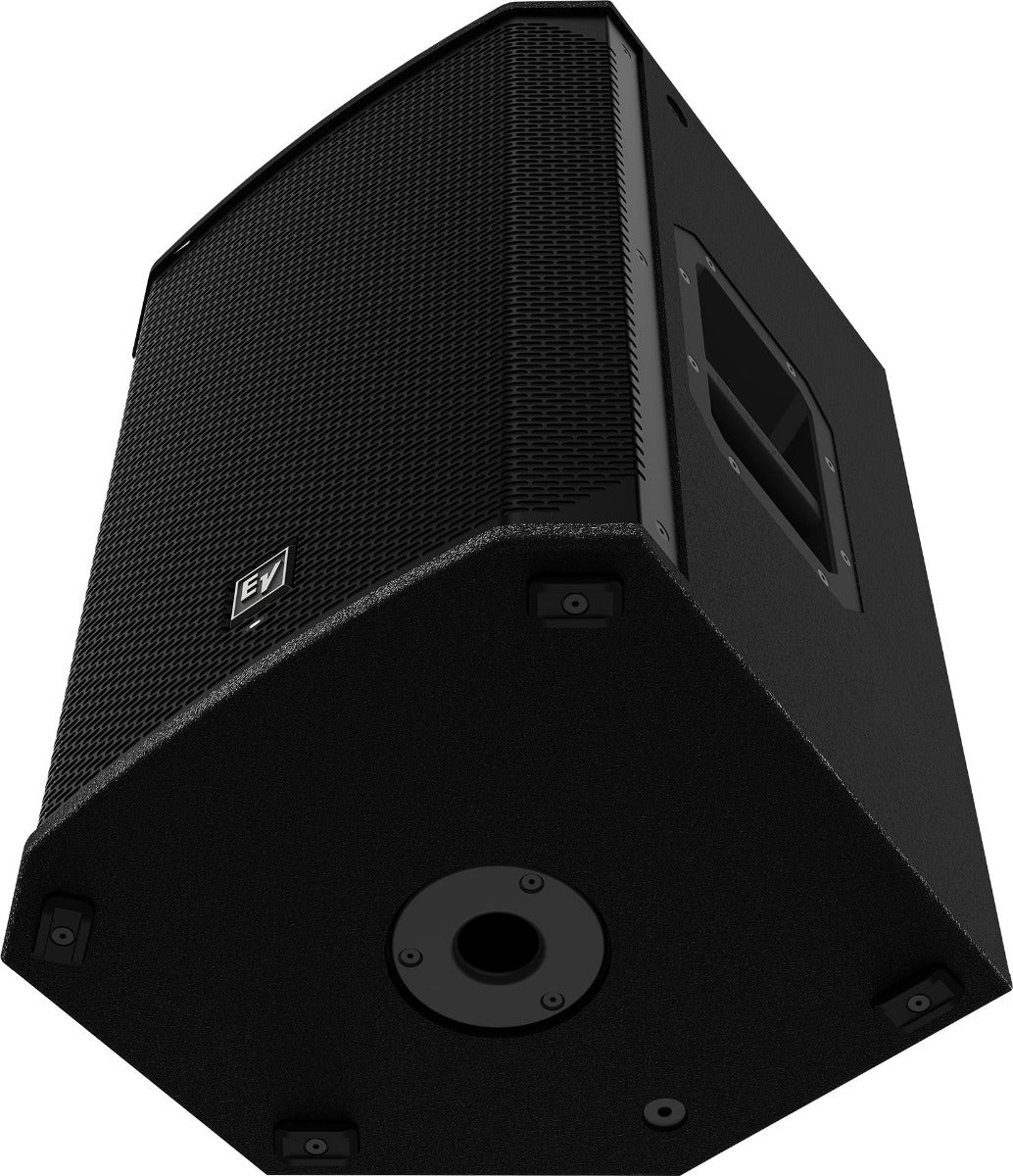

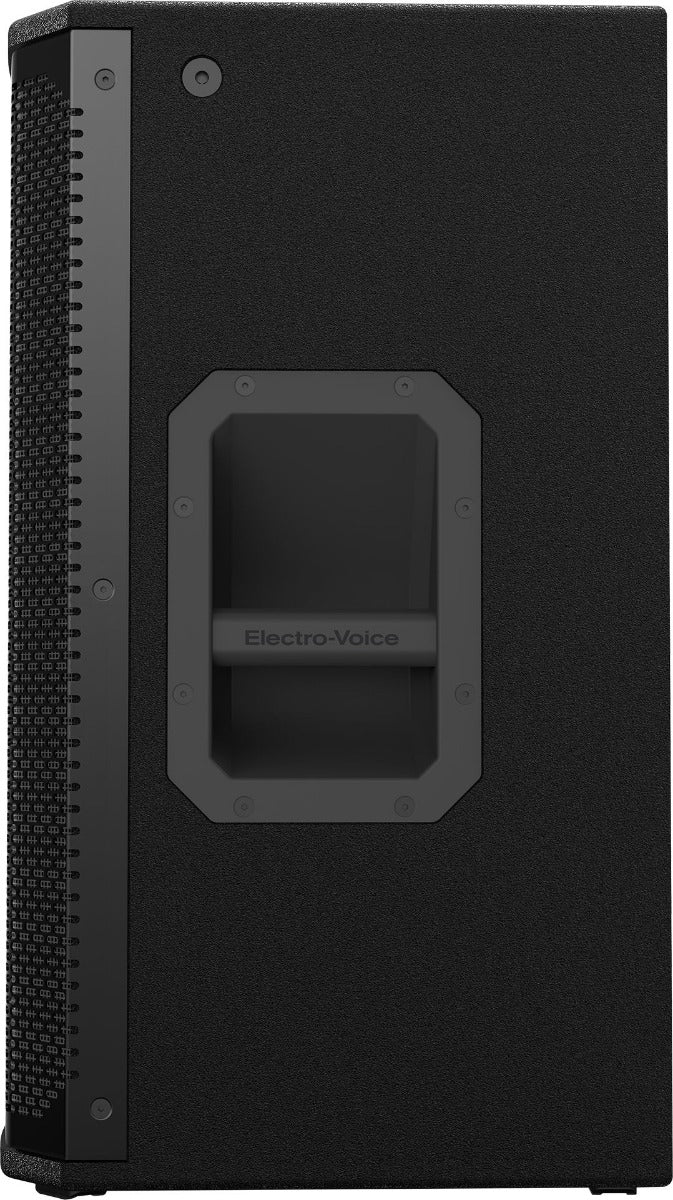

Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

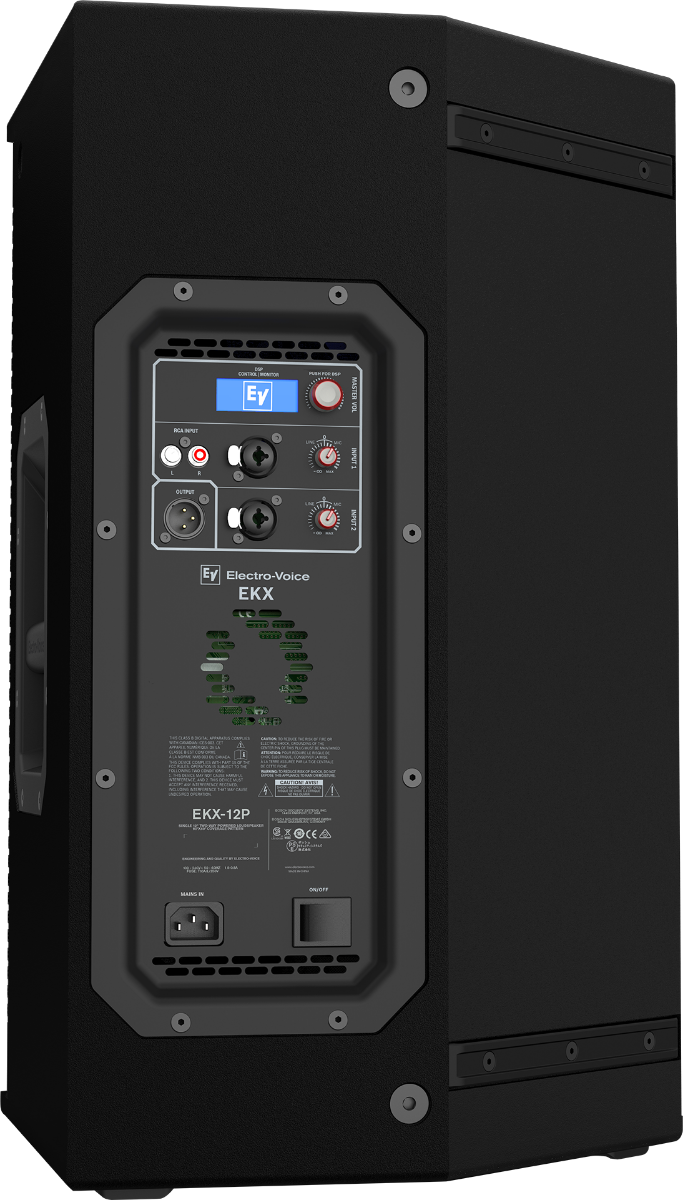

Connector Type	(1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Coverage (Nominal -6 dB) H	90 °
Coverage (Nominal -6 dB) V	60 °
Specifications

Crossover Frequency	1.7 k Hz
Depth	356 mm
Enclosure Material	15 mm, plywood with EVCoat
Family	EKX
Frequency Response (-10 dB)	50 Hz - 20 kHz Hz
Frequency Response (-3 dB)	60 Hz - 18 kHz Hz
Grill	18 AWG steel with powdercoat
Height	607 mm
HF Transducer	DH-1M 1-inch titanium compression driver
LF Transducer	EVS-12M 300 mm (12 in)
Max. SPL/1m (calc)	132 dB
Maximum SPL	132 dB dB
Power Consumption	1.8 A
Power Rating	1500 W
Powered or Passive	Powered
Shipping Weight	22.9 kg
Speaker Type	Full-Range, two-way

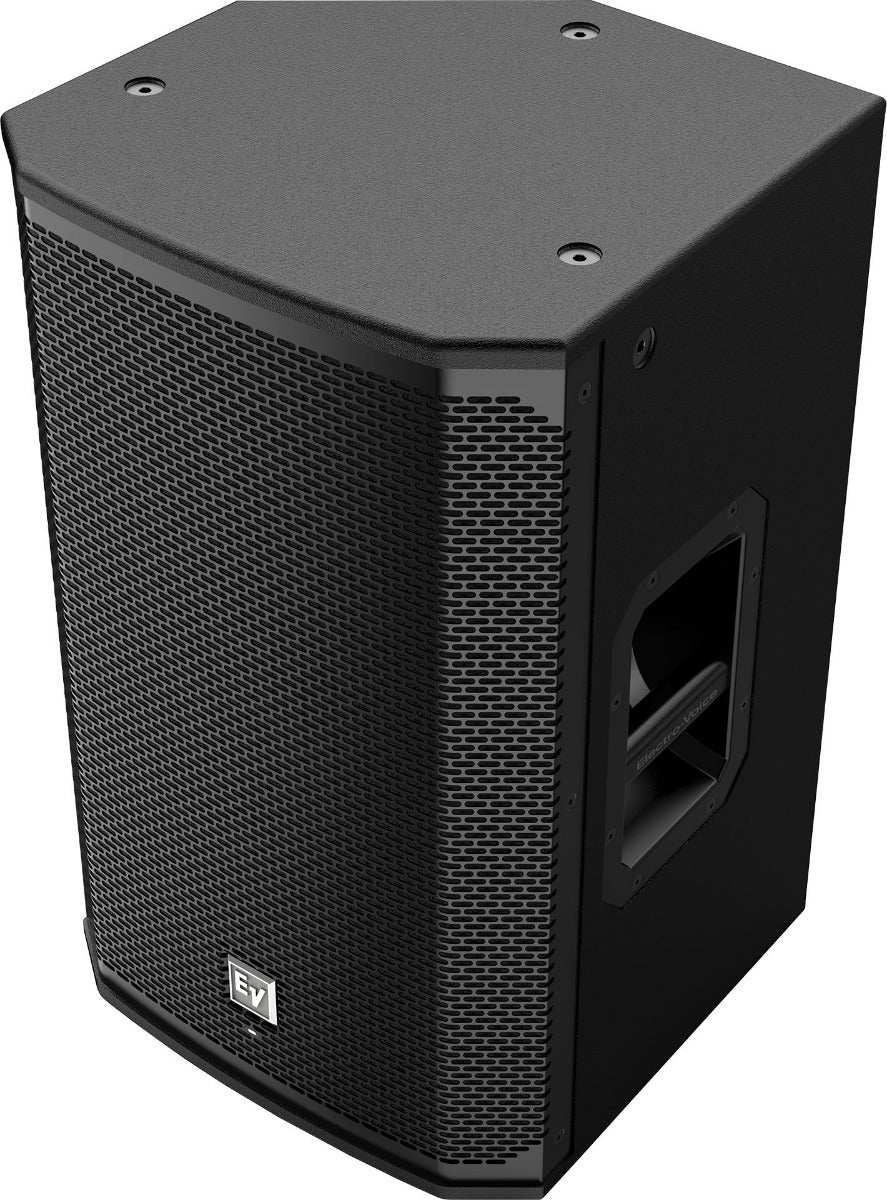

Suspension	(8) M10 threaded mounting points
Weight Net	18.8 kg
Width	375 mm
Woofer Size	12 mm
