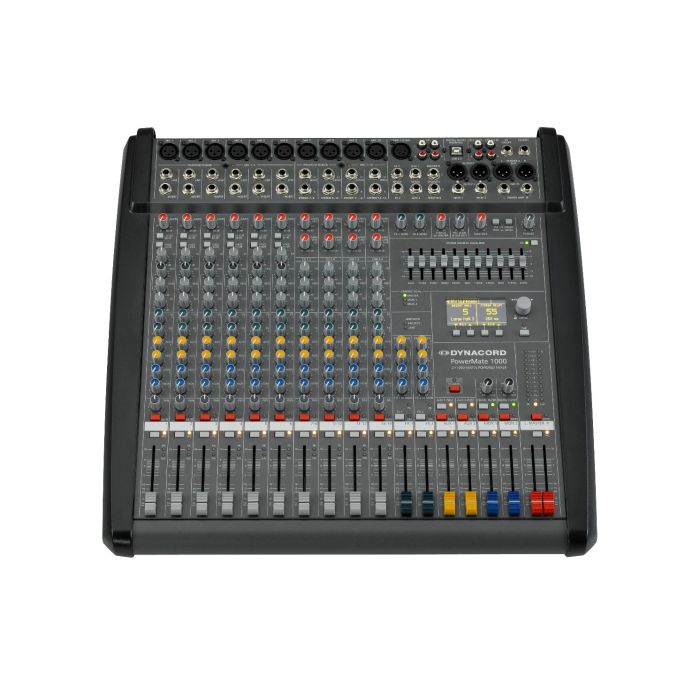

DYNACORD POWERMATE 1000-3 PM1000 POWERED MIXER
ACCEPTING BACKORDERSDynacord PowerMate 1000-3 PM1000 powered mixer
More Power - More Effects - More Extras
was the watchword of the developers of the ‘original’ PowerMate, and their exemplary realization of these aims set a new standard in mixing desks with integrated effects units and power amplifiers. In the PowerMate, the professional user has a mixing desk, multi-effects unit and power amplifier that is capable of delivering concert sound performance, that is compact and portable but nonetheless a very powerful system solution, and that as a small-PA leaves nothing to be desired. The same spirit of innovation has dominated the further development of what was already an exquisite piece of technology and finds expression in a wealth of technical details, in its user-friendliness, its reliability and safety of operation, its efficient energy management and its superb styling. The perfection of every component reflects the passion of the developers.
Perfection – Passion – PowerMate
The Ideal Solution for an Enormous Variety of Applications
Whilst for a great many live music applications an integrated solution in the shape of a powered mixer has long been the proven and preferred alternative, PowerMates, with their flexible performance profile, soon found acceptance, too, in such places as hotels, churches, halls, music schools, clubs and restaurants as well, naturally, as in the rental business, being convenient, compact, light and very simple to operate systems for small to medium-sized events.
| Custom Stock Status | ACCEPTING BACKORDERS |
|---|---|
| Specification | SPECIFICATIONSChannels (Mono + Stereo)
6 + 4
Auxiliaries (MON, FX, AUX)
2 Pre, 2 Post, 2 Pre/Post switchable
Maximum Midband Output Power,1 kHz, THD=1%, Dual Channel
into 2.66 Ohms
2 x 1350 W
into 4 Ohms
2 x 1000 W
into 8 Ohms
2 x 600 W
Rated Output Power,THD=0.1%, Single Channel
into 4 Ohms
2 x 900 W
into 8 Ohms
2 x 450 W
Maximum Output Voltage of power amplifier, no load
74 Vrms
THD at 1kHz, MBW=80kHz
MIC input to Master A L/R output, +16 dBu, typical
< 0.005%
POWER AMP INPUTS to Speaker L/R output
< 0.075%
DIM 30, power amplifier, 60Hz, 7kHz
< 0.05%
IMD-SMPTE, power amplifier, 60Hz, 7 kHz
< 0.015%
CMRR, MIC input, 1 kHz
> 80 dB
Equivalent Input Noise, MIC Input, A-weighted, 150 Ω
-130 dBu
Signal/Noise-Ratio, power amplifier, A-weighted, 4 Ohms
105 dB
Output Stage Topology, amplifier
Class D
Equalization
LO Shelving
+/- 15 dB / 60 Hz
MID Peaking, mono inputs
+/- 15 dB / 100 Hz .. 8 kHz
MID Peaking, stereo inputs
+/- 12 dB / 2.4 kHz
HI Shelving
+/- 15 dB / 12 kHz
Master EQ, 11-band (63, 125, 250, 400, 1k, 1.6k, 2.5k, 4k, 6.3k, 12k Hz)
+/- 10 dB / Q = 1.5-2.5
Filter
LO-CUT, mono inputs
f=80 Hz, 18 dB/oct
VOICE FILTER, mono inputs
FEEDBACK FILTER, MON1/2
70 Hz .. 7 kHz, Notch, -9 dB
Speaker Processing
LPN, switchable
Display
High Contrast OLED
Effects
Type
Dual stereo 24/48-bit multi effects processors
Effects presets
100 Factory + 20 User, Tap-Delay
Remote control
Footswitch, MIDI
Digital Audio Interface
Channels
4 In / 4 Out
AD/DA Conversion
24bit
Sampling Rate
44.1 / 48 / 88.2 /96 kHz
PC Interface
USB 2.0, Female Type B
MIDI Interface
5-pin DIN connector, In / Out
Output Power Control
Adjustale RMS Limiter
Protections
Mixer Outputs (Relay controlled)
MON1, MON2, MASTER A
Amplifier
Audio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-On-Delay
Switching Mode Power Supply (µPC controlled)
Inrush Current Limiters, Mains Over/Under Voltage, Mains Over Current, High Temperature
Cooling
Continuous speed controlled Fans
Phantom Power, switchable in groups
48V DC
Power Requirements (SMPS with auto range mains input)
100 V .. 240 V AC, 50 Hz .. 60 Hz
Power Consumption, at 1/8 maximum output power, 4 Ohms
450 W
Safety Class
1
Ambient Temperature Limits
+5 °C .. + 40 °C / 40 °F .. 105 °F
Dimensions (W x H x D), mm
Rack-Mount
483 x 135 x 443.7
with lid
510.5 x 164.5 x 498.5
Weight
Net weight, without lid
12.5 kg
Net Weight, with lid
14.0 kg
Shipping Weight
17.0 kg
Warranty
36 Months
Optional Accessories
RMK-1000-3 (Rack-Mount Kit)
F01U161506 (DC-RMK1000-3)
Gooseneck Lamp, 12V/5W, 12", XLR 4 pol
F01U118983 (DC-LITLITE-4P)
FS11 (Footswitch with LED)
F01U100598 (DC-FS11)
Device in rated condition, Unity Gain (MIC Gain 20 dB), all faders position 0 dB, all pots in mid position, master fader +8dB, LPN +12dB, amplifier load 8 ohms, dual channel, Mains voltage 230V/50Hz or 120V/60Hz, unless otherwise specified. |
| Manufacturer | DYNACORD |
| Package | 1 Pack |
SPECIFICATIONS
Device in rated condition, Unity Gain (MIC Gain 20 dB), all faders position 0 dB, all pots in mid position, master fader +8dB, LPN +12dB, amplifier load 8 ohms, dual channel, Mains voltage 230V/50Hz or 120V/60Hz, unless otherwise specified.
